One of the most basic industrial techniques, casting involves pouring molten metal into a mold to produce a solid product with a designated form and structure.  Its adaptability and economy of cost have made it indispensible in sectors like construction, aircraft, and automobile.  Thanks to technological developments, we today have a wide range of specialized casting techniques, each designed for particular use and requirement.  Eleven various casting techniques are investigated in this paper together with their particular features, benefits, and drawbacks.

Sand Casting

Sand casting is one of the oldest and most widely used casting methods. It involves creating molds from silica-based materials like naturally bonded or synthetic sand. This process is particularly suitable for producing large components, such as engine blocks for the automotive industry. However, sand casting often results in products with a slightly rough surface finish, which may require additional machining.

The capacity of sand casting to generate massive and intricate pieces at a quite low cost is one of its main benefits.  It is also quite flexible, enabling the employment of a great variety of metals and alloys.  Sand casting can, on the negative side, be labor-intensive and provide parts with less dimensional precision than other casting techniques.

Gravity Die Casting

Using reusable molds composed of robust materials like steel and graphite, gravity die casting—also known as permanent mold casting, uses  Molten metal is poured straight into the mold cavity under gravitational influence in this procedure.  Materials include lead, zinc, aluminum, magnesium alloys, certain bronzes, and cast iron especially fit this approach.

Manufacturing many items like gears, gear housings, pipe fittings, wheels, and engine pistons is best done by gravity die casting.  For medium to large volume manufacture, the molds' reusable character makes this procedure affordable.  The molds can have a significant initial cost, though, and the technique is less appropriate for particularly complicated forms.

Pressure Die Casting

Low and high pressure versions of pressure die casting exist.  Mass-produced complex and exact components are best suited for high-pressure die casting; bigger and simpler parts are better suited for low-pressure die casting.  Under high pressure, molten metal is pumped into the mold, this technique guarantees fast filling and solidification.

Excellent dimensional precision and great production speeds are well recognized features of pressure die casting.  Production of parts including engine components, housings, and connections in the automotive and electronics sectors makes frequent use of it.  Small-scale manufacturing may find the equipment's and molds' high initial cost a deterrent, nevertheless.

Investment Casting

Making a wax pattern covered in a refractory substance forms a disposable ceramic mold in investment casting, often known as lost wax casting.  The finished result is molten metal poured into the mold after the wax melts away.  Excellent surface smoothness and complicated forms may be produced by this very exact method.

Small to medium-sized items with complex details—such as gears, bicycle components, and turbine blades—where investment casting is perfect  High-volume production is less suited for this labor-intensive and costly technique, though.  Investment casting is extensively applied in sectors needing great accuracy and quality despite its expense.

Plaster Casting

Particularly with narrow cross-section pieces, plaster casting makes use of a mold created from plaster of Paris to cool the metal more gently, therefore enabling great precision.  Aluminum, zinc, and copper alloys, among non-ferrous metals, are well suited for this approach.  But because of its low melting point, plaster makes poor fit for high-temperature ferrous materials.

Excellent surface smoothness and dimensional precision produced by plaster casting are among its key benefits for creating components.  Prototypes and small batch manufacturing of parts frequently call for it.  Still, especially for bigger components, the technique is somewhat sluggish and may be more costly than other casting techniques.

Centrifugal Casting

Using centrifugal forces, centrifugal casting, also called rotocasting, distributes molten metal within a rotating mold.  Making cylindrical components like pipes, tubes, and rings calls especially for this approach.  Three forms of centrifugal casting exist: vertical, semi-centrifugal, and genuine centrifugal casting.

High density and few defects, such as blowholes and shrinkage, are well known results of centrifugal casting for components.  Production of products including bush bearings, clutch plates, and cylinder liners in sectors like automotive, aerospace, and construction makes it widely utilized.  The procedure, however, is confined to generate rotally symmetric components and might not be appropriate for all kinds of metal alloys.

Lost Foam Casting

Though it employs foam patterns instead of wax, lost foam casting is like investment casting. After a refractory ceramic substance covers the foam design, it is molded. Pushed into the mold, melted metal vaporizes the foam and fills the space to produce the finished product. This approach is appropriate for carbon steel and alloy steel among other materials.

Lost foam casting is ideal for producing complex parts with intricate details, such as pump housings, fire hydrants, and valves. The process is cost-effective and produces minimal waste, making it an environmentally friendly option. However, the foam patterns can be fragile and may require careful handling during the coating and molding process.

Vacuum Casting

Under vacuum pressure, vacuum casting removes air pockets and bubbles thereby guaranteeing a high-quality finish. Components including structural chassis components and automobile body panels are often produced using this technique. Materials prone to oxidation or gas porosity especially fit for vacuum casting.

The ability of vacuum casting to provide pieces with outstanding surface smoothness and few flaws is one of its key benefits. Industries like aircraft and medical equipment that need for premium components typically find use for it. Still, the procedure could be more time-consuming and costly than alternative casting techniques.

Squeeze Casting

Combining die forging and permanent mold casting is the hybrid technique known as squeeze casting. This procedure shapes a certain quantity of molten metal by use of pressure exerted inside a die. After heating the metal component past its melting point, it is taken out from the die. Production of safety-critical components in automobile systems is best suited for this approach.

High strength and great dimensional precision are well-known results from squeeze casting of components. Components like aluminum front steering knuckles and space frame joints are produced from it most often. Though the technique might be more costly than conventional casting techniques and calls for certain tools.

Continuous Casting

Regular mass manufacturing of metal profiles with a constant cross-section is made possible by continuous casting. In the manufacturing of steel bars, rods, and strips especially, this approach is very common. Molten metal is poured into a water-cooled mold where it hardens and is continually removed.

High production speeds and capacity to generate homogeneous products with little waste define continuous casting. Long metal items are produced in the steel sector mostly using it. The approach might not be appropriate for small-scale manufacturing, though, and calls for large initial equipment investment.

Shell Molding

Using a finer sand combined with resin, shell molding is a throw-away mold casting technique. Producing industrial goods like gearbox housings, connecting rods, and truck hoods calls especially for this approach. Popular for medium-volume manufacture, shell molding provides a reasonable mix of cost and quality.

Excellent surface smoothness and dimensional precision produced by shell molding are among its primary benefits for creating components. The procedure is quite quick and may be automated for higher effectiveness. But since the molds are not reusable, high volume manufacturing may find their expenses rising.

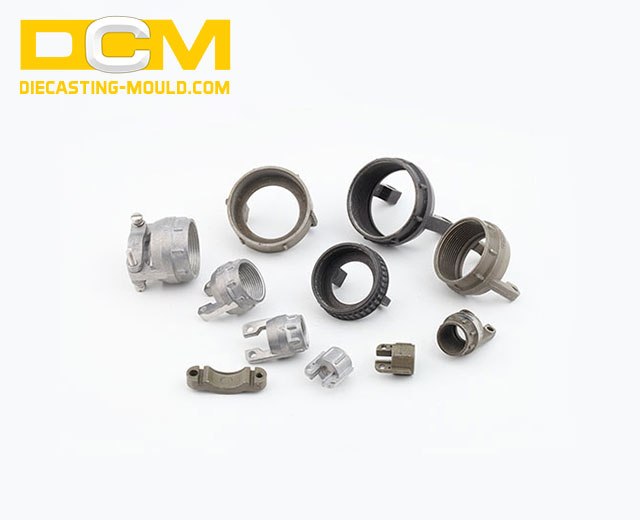

Working with a reputable zine die casting parts manufacturer like Diecasting-Mould.Com will help to greatly improve accuracy and quality in die casting. Their knowledge in zinc die casting guarantees that your parts satisfy the best performance and durability criteria.
